48V 200Ah Lithium Powerwall

Model Number: LFP48V200AH
Weight: 108kgs
Brand Name: LifePO4 Lithium Battery Pack
Size: 680*495*185mm
Color: Gray/Black/ Red/White
Warranty: 10 years
Certificate: CE/ROSH/MSDS/UN38.3/IEC/ISO9001/ISO14001
Application: Home Appliances, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
Battery Type: LifePO4 Lithium Battery Pack
inverter: Solax, Goodwe, Growatt, Victron, Sofar, GMDE, etc.
Usage: Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Boat
Packing: Wooden Box / Carton Packing
Voltage: 48V
Detail

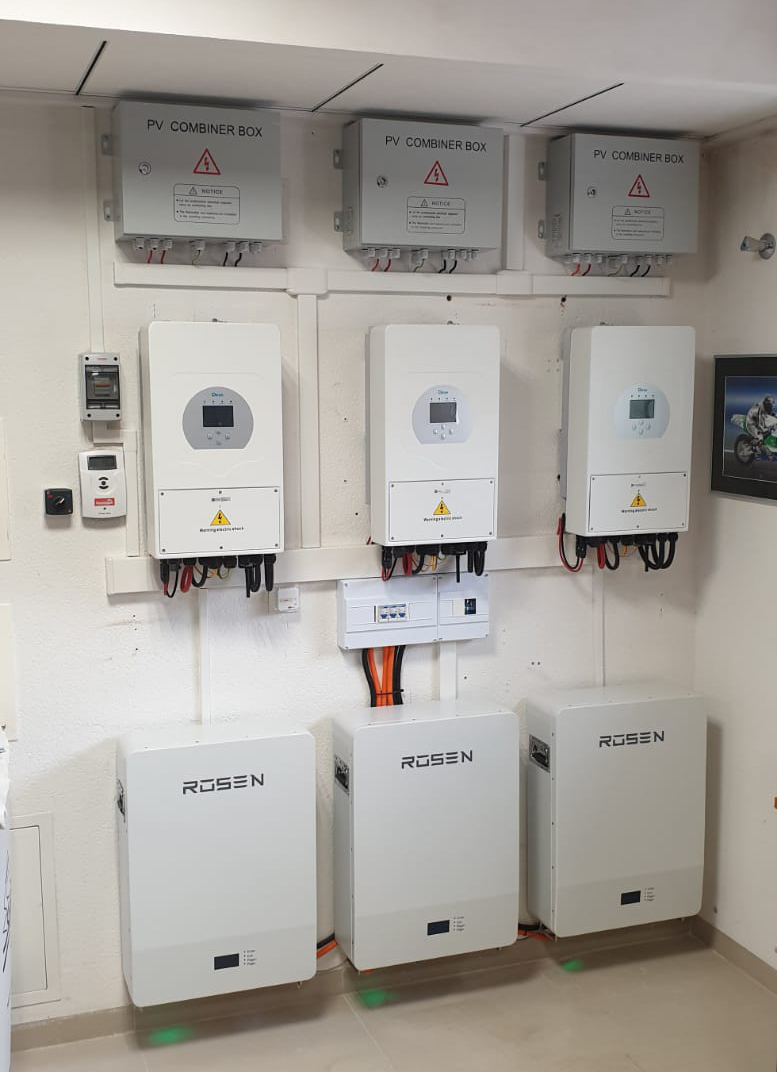

Rosen Lithium battery projects are installed for home and commercial solar projects. Home projects are more used with power wall types 48Vdc or 51.2Vdc 50Ah, 100Ah, 150Ah, 200Ah, 300Ah, 400Ah etc whose communication protocols are compatible with hybrid solar storage inverters 3kw, 5kw, 8kw, 10kw, 12kw etc.   Rosen lithium battery powerwall, stackable rack type models, for solar Energy Storage Systems, are compatible with most brands of hybrid inverters like Growatt, Solis, Goodwe, Sofar, Deye, Outback, Victron etc(RS485 or CAN bus).   Battery cells are all tier 1 brands like byd, gotion catl etc. OEM and ODM available with the min 1 unit.   Commercial projects BESS are more for factories like 100kw, 150kw, 200kw, 250kw, 300kw, 500kw, 1MW, 2MW, 5MW, 10MW etc, with containerized design and EMS programmable. Rosenpv lithium battery warranty is up to 10years, and MSDS/UN38.3 certificates are listed for safety installation.


lifepo4 batteries.jpg


Attractive Design

Rosen Lithium battery has compact design, LCD screen, convenient setting buttons, bluetooth Monitor on your smartphones, and cables&accessories ready for installation.
To welcome the world cooperation we accept OEM with your logo design!

Wide Application
Rosen Lithium Ion Powerwall series are widely used in Solar Systems for residential and commercial use. With more than 6000 times deep cycle, up to 90% DOD and phosphate battery Cell, Rosenpv Powerwall has won global approval!Rosen Powerwall design belongs to Rosen patent. Rosen reserves sole and only right for sales of it's powerwall.
Integrated Function
Rosenpv Powerwall can be installed in parallel with combiner box for protection, with it's integrated BMS communication protocol to comprehensive hybrid and off grid inverters!

Type
Module
Powerwall
Model
LFP48V50AH
LFP48V100AH
LFP48V150AH
LFP48V200AH
LFP48V300AH
Battery Capacity [Ah]
50Ah
100Ah
150Ah
200Ah
300Ah
Nominal Battery Energy [kwh]
2.4
4.8
7.2
9.6
14.4
Max Discharge Current [A]
50
100
150
200
300
Net Weight
35
68
95
108
144
Dimension [H*W*D, mm]
442*480*185
680*495*185
680*495*185
680*495*185
1020*495*190
Operating Temperature Range
-20 ~ 50 [℃ ]
Life Cycles
>6000
Nominal Voltage [V]
48Vdc
Communication
CAN/RS485/DRY CONTACT
Certificate & Safety Standard
TUV / CE / EN62619 / IEC62040 / UN38.3
Warranty
10 Years
Alarms
Battery Operation/Out of Battery/System fault
Pros
Applied in off-grid and hybrid system, Compact Design, Modular Expansion
Monitoring & Protection
With BMS protection in each Module, and breaker embedded in the system


lithium battery prjects.jpgSolar PARTNER.jpg
