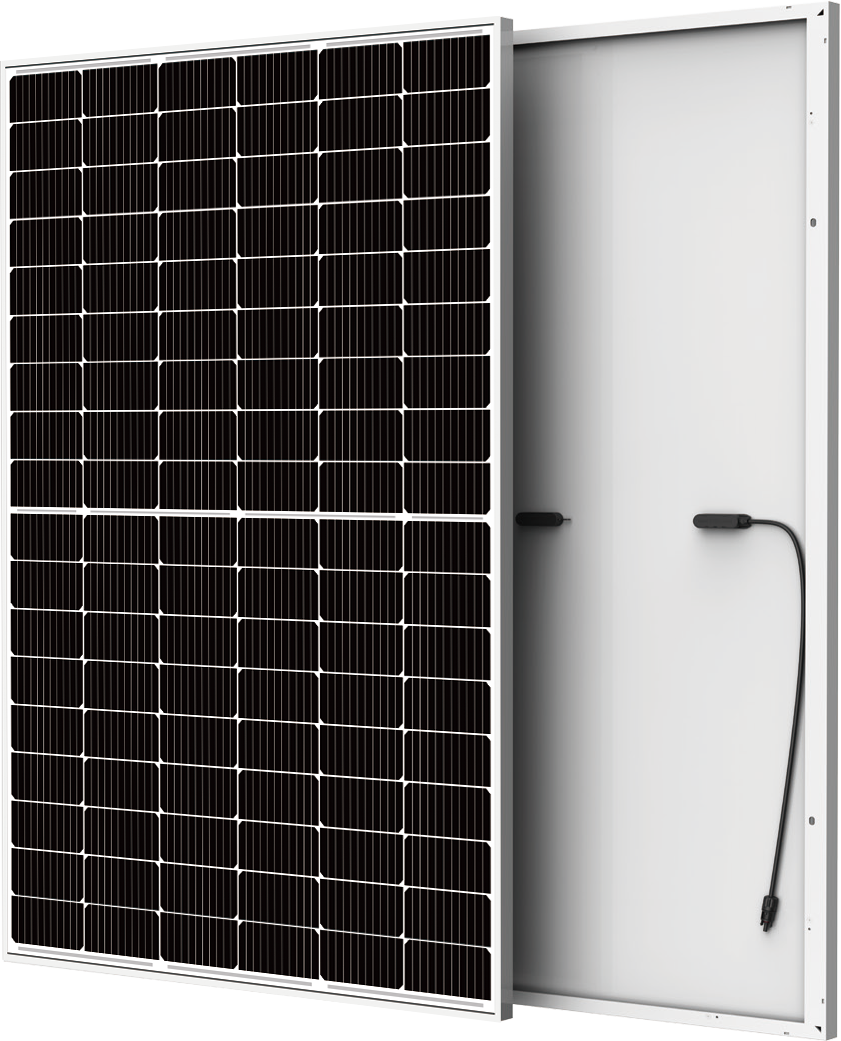

TW 410W Solar Panels
Share to：

TW 410W Solar Panels

Model Number： RSM420-108HC
Cell Orientation： 108cells(2*54)
Weight： 20.5kg
Brand Name： Rosen Solar
Size： 1722*1134*30mm
J-Box： IP68 rated, 3 diodes
Solar cell： Monocrystalline, 182mm
Warranty： 25 year Power Warranty
Backsheet： White
Glass： 3.2mm, High Transparency solar glass
PV Cable： Portrait: 300mm(+)/400mm(-); Landscape: 1300mm(+)/ 1300mm(-); 4mm²
Connector： MC4 Compatible
Frame： Silver, Anodized Aluminium Alloy
Encapsulant Material： EVA/POE
 Send a message
Detail

550W Solar Panels.jpg

Technical Specification Data(STC) of Solar Panel:

Model
RS400M--108HC
RS405M--108HC
RS410M--108HC
RS415M--108HC
RS420M--108HC
Rated Maximum Power at STC
400W
405W
410W
415W
420W
Open Circuit Voltage(Voc)
36.98
37.06
37.14
37.31
37.43
Maximum Power Voltage(Vmp)
30.42
30.52
30.62
30.79
30.91
Short Circuit Current(Isc)
13.78
13.85
13.92
14.01
14.12
Maximum Power Current(Imp)
13.15
13.27
13.39
13.48
13.59
Module Efficiency(%)
20.48
20.74
21.00
21.25
21.51
Standard Test Condition(STC)
Irradiance 1000w/m2, Cell Temperature 25 Centigrade, Air Mass 1.5
ELECTRICAL DATA(NMOT)
Maximum Power-PMAX (Wp)
298
301
305
309
312
Maximum Power Voltage(VMPP)
28.42
28.56
28.72
28.88
29.01
Maximum Power Current(Imp)
10.47
10.55
10.62
10.69
10.76
Open Circuit Voltage-VOC (V)
34.90
34.98
35.05
35.21
35.39
Short Circuit Current-ISC (A)
11.13
11.19
11.24
11.32
11.38
NOCT:Irradiance 800W/m2,Ambient Temperature 20°C,Wind Speed 1m/s.

550W Solar Panel

Detailed Images of Solar Panel:
