10Kw Lifepo4 Battery
Share to：

10Kw Lifepo4 Battery

Model Number： LFP48V200AH
Weight： 96kgs
Brand Name： LifePO4 Lithium Battery Pack
Size： 802*552*172mm
Color： Gray/Black/ Red/White
Warranty： 10 years
Certificate： CE/ROSH/MSDS/UN38.3/IEC/ISO9001/ISO14001
Application： Home Appliances, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
Battery Type： LifePO4 Lithium Battery Pack
inverter： Solax, Goodwe, Growatt, Victron, Sofar, GMDE, etc.
Usage： Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Boat
Packing： Wooden Box / Carton Packing
Voltage： 48V
 Send a message
Detail
Product Overview


Technical Specification

Type
Power wall
Model
LFP48V100AH
LFP48V150AH
LFP48V200AH
LFP48V300AH
Battery Capacity [Ah]
100Ah
150Ah
200Ah
300Ah
Nominal Battery Energy [kwh]
4.8
7.2
9.6
14.4
Max Discharge Current [A]
100
150
200
200
Net Weight
68
95
108
144
Dimension [H*W*D, mm]
802*552*172
802*552*172
802*552*172
1020*495*190
Operating Temperature Range
-20 ~ 50 [℃ ]
Life Cycles
>6000
Nominal Voltage [V]
48Vdc
Communication
CAN/RS485/DRY CONTACT
Certificate & Safety Standard
TUV / CE / EN62619 / IEC62040 / UN38.3
Warranty
10 Years
Alarms
Battery Operation/Out of Battery/System fault
Pros
Applied in off-grid and hybrid system, Compact Design, Modular Expansion
Monitoring & Protection
With BMS protection in each Module, and breaker embedded in the system

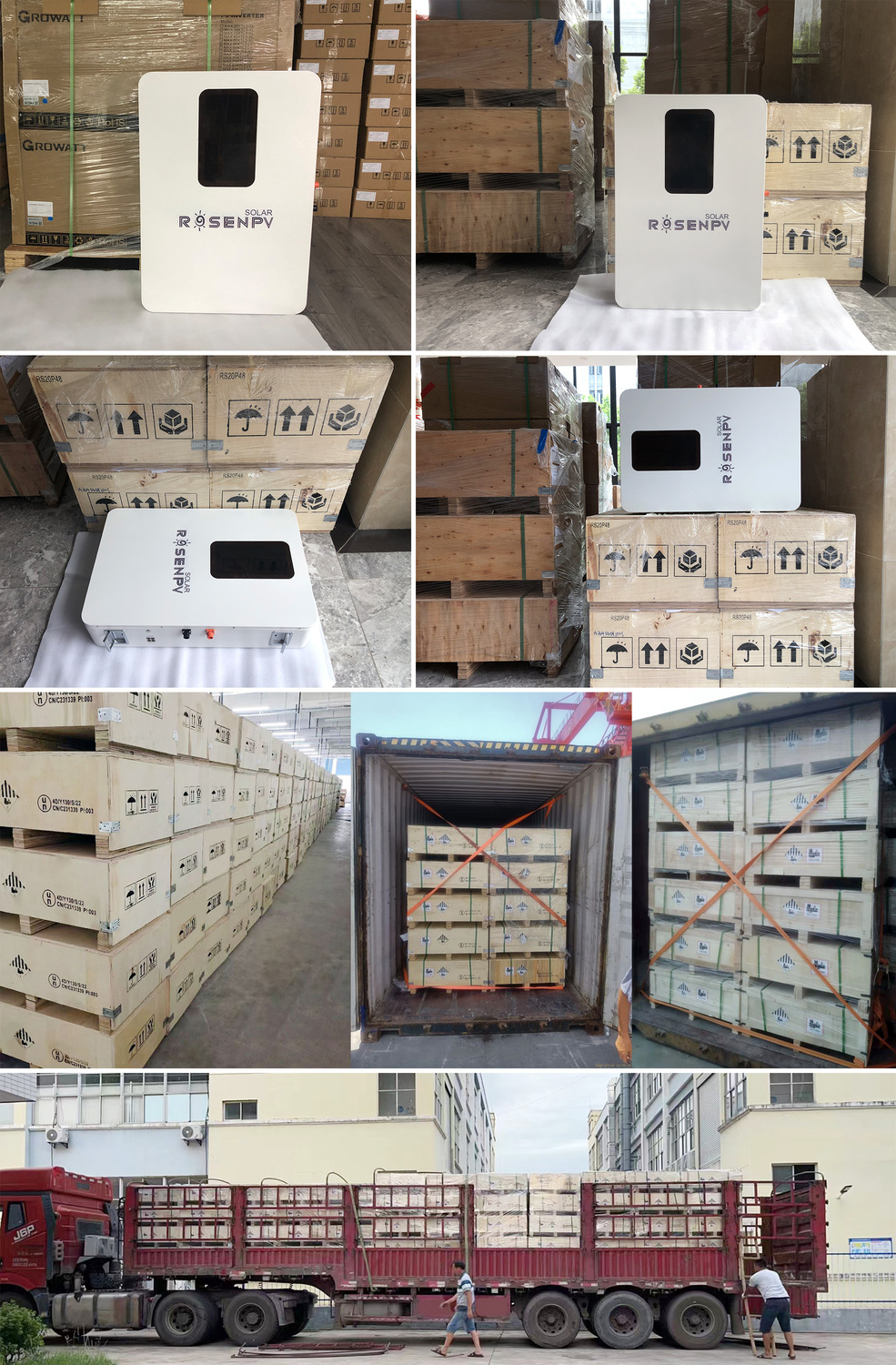

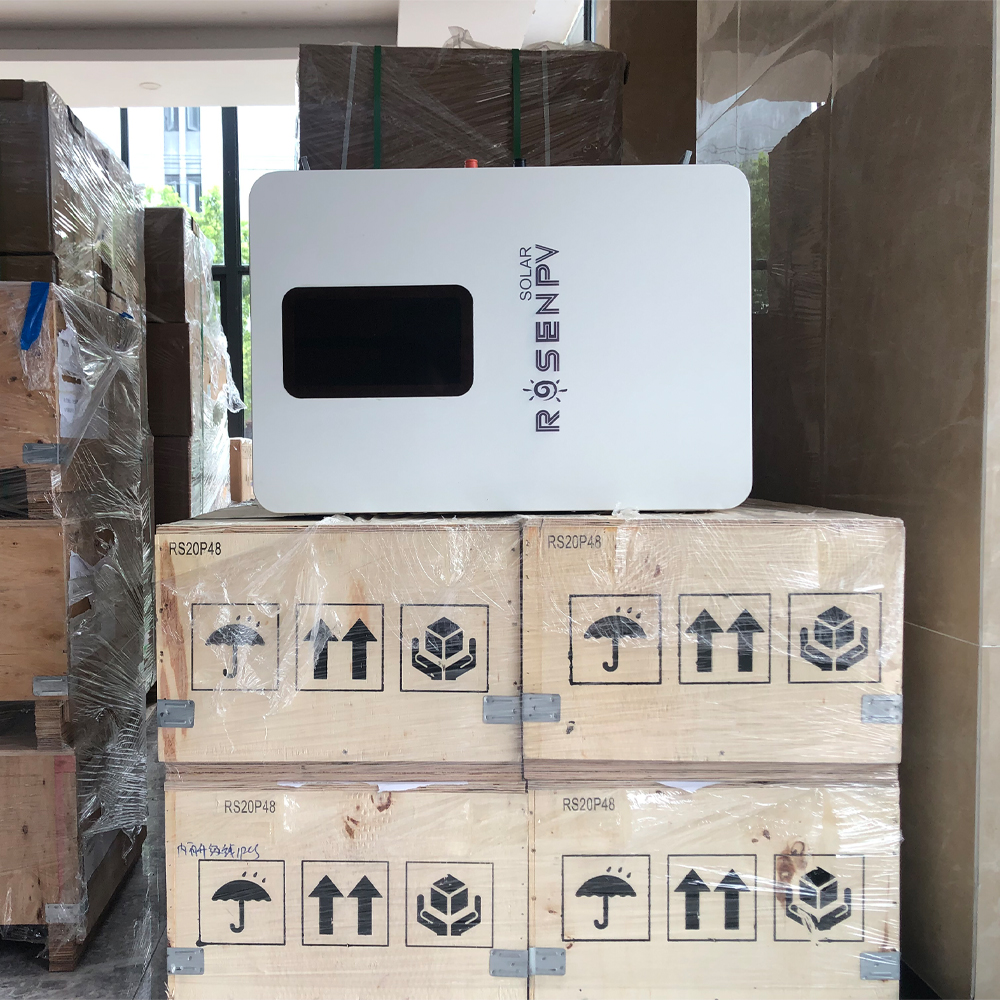

Package & Delivery

Lithium Batteries.jpg
