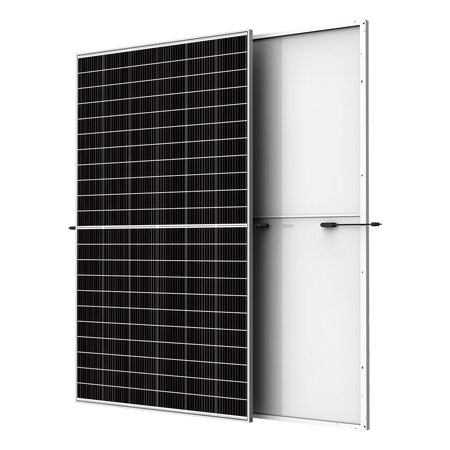

700W Solar Panels

Model Number: RSM700-132HC
Cell Orientation: 132cells(6*22)
Weight: 34.4kg
Brand Name: Rosen Solar
Size: 2385*1303*35mm
J-Box: IP68 rated
Solar cell: Monocrystalline, 210mm
Warranty: 25 year Power Warranty
Backsheet: White
Glass: 3.2mm, High Transparency solar glass
Connector: MC4 EVO2/TS4*
Frame: Silver, Anodized Aluminium Alloy
Encapsulant Material: EVA/POE
Detail

Rosen Solar is professional manufacturer of solar panel.

Monocrystalline 132cells Solar Panel.

Power Range: 605~700W

mono 550w solar panel.jpg

Technical Specification Data(STC) of Solar Panel:

Model

RSM650-132

HC

RSM660-132

HC

RSM680-132HC

RSM690-132

HC

RSM700-132

HC

Rated Maximum Power at STC
650W
660W
680W
690W
700W
Open Circuit Voltage(Voc)
45.0
45.4
46.2
46.8

47.2

Maximum Power Voltage(Vmp)
37.9
38.3
39.1
39.5
39.9
Short Circuit Current(Isc)
18.39
18.47
18.63
18.71
18.79
Maximum Power Current(Imp)
17.16
17.24
17.40
17.48
17.55
Module Efficiency(%)
20.9
21.2
21.9
22.2
22.5
Standard Test Condition(STC)
Irradiance 1000w/m2, Cell Temperature 25°C, Air Mass 1.5

10bb solar panel.png

Detailed Images of Solar Panel:

Packaging & delivery:

Packing Details   : In carton on pallet or wooden box

Delivery Details : 5-10 working days

half cell solar panel.jpg
