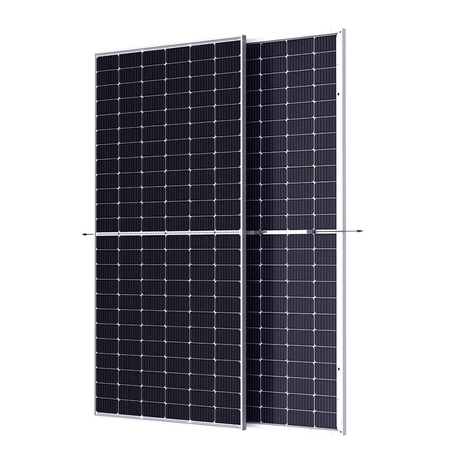

Bifacial Dual Glass Solar Panel 550W
Share to：

Bifacial Dual Glass Solar Panel 550W

Model Number： RSM550-144BDG
Battery Capacity： 144cells(6*24)
Weight： 34kg
Brand Name： Rosen Solar
Size： 2285*1134*35mm
J-Box： IP 68, 3 diodes
Solar cell： Monocrystalline, PERC
Warranty： 30 year Power Warranty
Glass： 2.0mm, High Transmission, AR Coated Heat Strengthened Glass
Connector： MC4-compatible
Frame： 35mm Anodized Aluminium Alloy
Encapsulant Material： EVA/POE
 Send a message
Detail

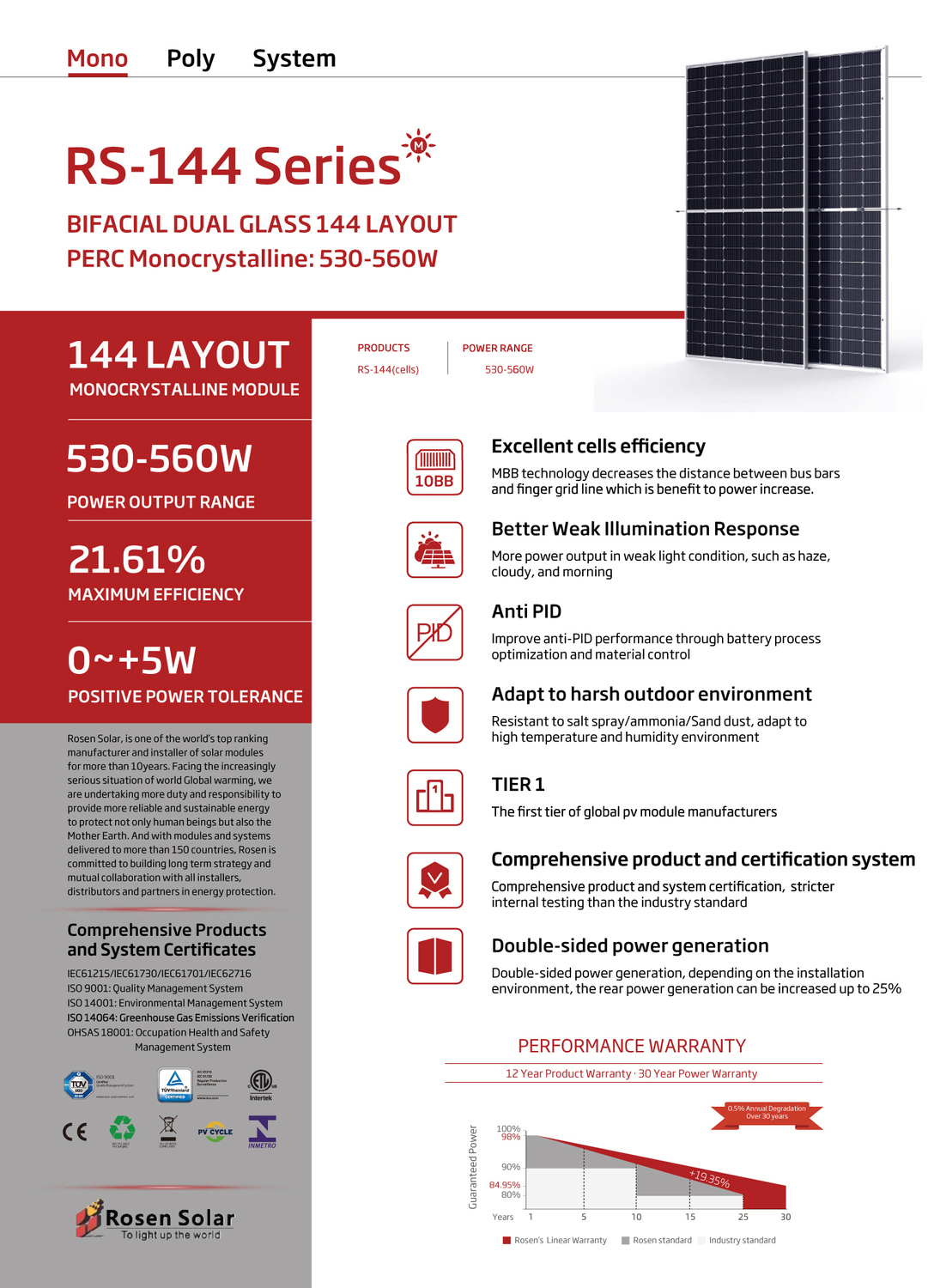

Bifacial Dual Glass Solar Panel 460W.jpg

Technical Specification:

Model

RSM530M-

144BDG

RSM540M-

144BDG

RSM550M-

144BDG

RSM555M-

144BDG

RSM560M-

144BDG

Rated Max. Power at STC
530W
540W
550W
555W
560W
Open Circuit Voltage(Voc)
49.40
49.80
50.20
50.40
50.60
Max. Power Voltage(Vmp)
41.10
41.50
41.90
42.10
42.30
Short Circuit Current(Isc)
13.65
13.77
13.89
13.95
14.01
Max. Power Current(Imp)
12.91
13.02
13.13
13.19
13.25
Module Efficiency(%)
20.45
20.84
21.23
21.42
21.61
Standard Test Condition(STC)
Irradiance 1000w/m2, Cell Temperature 25°C, Air Mass AM1.5
ELECTRICAL DATA(NMOT)
Max. Power-PMAX (Wp)
396.40
403.60
410.80
414.50
418.20
Max. Power Voltage(Vmpp)

38.20

38.50
38.90
39.10
39.30
Max. Power Current(Imp)
10.38
10.47
10.56
10.60
10.64
Open Circuit Voltage-Voc (V)
46.20
46.50
46.90
47.10
47.30
Short Circuit Current-Isc (A)
11.02
11.12
11.22
11.27
11.32
NOCT:Irradiance 800W/m2,Ambient Temperature 20°C,Wind Speed 1m/s.

Technical Specification:

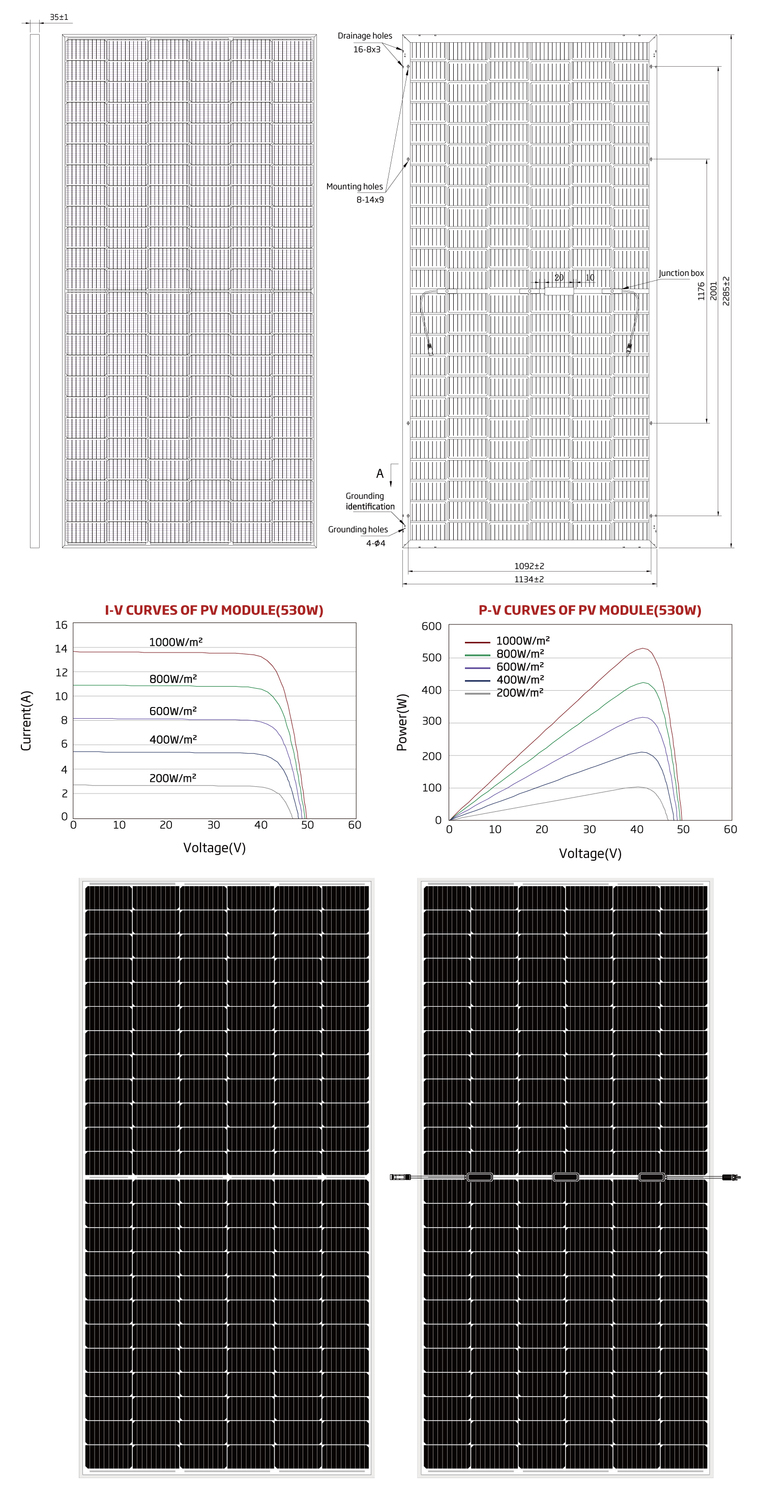

solar panels.jpg
